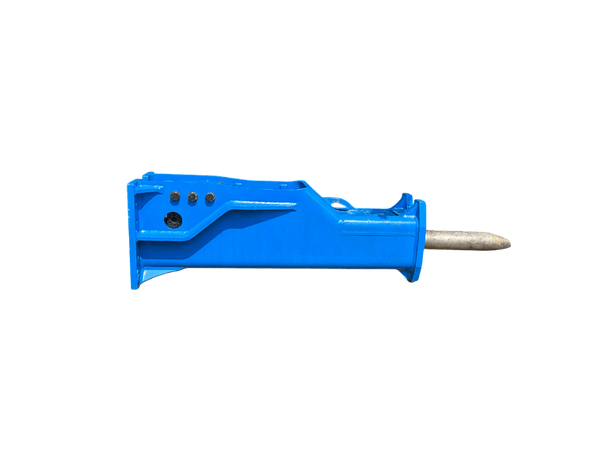

| Specification | Furukawa F70 |
|---|---|
| Carrier Weight Class | 48.5 – 77 U.S. tons |
| Service Weight | 10,274 lbs (4,670 kg) |
| Tool Diameter | 7.09 in (180 mm) |
| Working Length | 148.5 in (3,775 mm) |
| Hydraulic Input Power | ~102 kW |
| Oil Flow Range (GPM) | 66 – 90 GPM (250 – 340 LPM) |
| Operating Pressure (PSI) | 2,320 – 2,610 PSI (160 – 180 bar) |
| Impact Rate (BPM) | 250 – 320 BPM |
| Sound Power Level | 85 dB(A) @ 18 meters |
